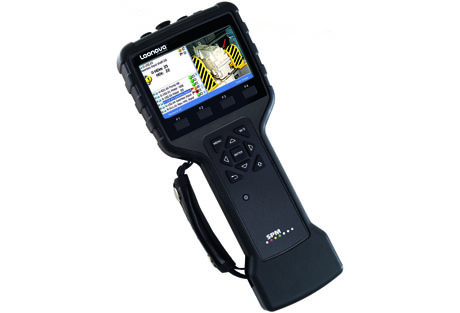

Leonova Diamond is lightweight, ergonomic and easy to operate. Load measuring rounds to Leonova from the PC, then simply measure and save. All input data is pre-programmed. You get an instant condition evaluation on a green-yellow-red scale.

The instrument will deliver long working life under the toughest, most demanding circumstances. Thanks to the heavy-duty, rubberized enclosure where connectors are well protected and electronic componentes reliably and securely attached, Leonova Diamond will endure shocks and impacts, extremes of vibration or temperature, electromagnetic fields and 1 meter drops onto concrete.

Instrument

Dimensions: 297 x 130 x 69 mm
Weight: 890 g
Display: TFT colour, 480 x 272 pixels, 4.3 inch widescreen, adjustable backlight
Housing: IP65

Overview

  • Three channel simultaneous vibration
  • Vibration 0 (DC) to 40 kHz
  • Up to 25 600 line FFT spectrum
  • ISO 2372, ISO 10816
  • Vibration spectrum in Hz, CPM or orders
  • Accepts IEPE (ICP) standard vibration transducers
  • Dynamic range up to 120 dB
  • Speed measurements 1-150 000 rpm
  • RF transponder for contact free measuring point identification, read and write functions in connection with CondID® memory tags
  • Snap action function keys
  • One hand operation, right or left
  • Smart battery reload with charge indication
  • Li-Ion battery for minimum 16 hours normal use
  • Graphics with time and scale zoom
  • USB communication
  • Download thousands of measuring points
  • History of up to 100 sets of measuring results and comments per point
  • Enveloping, true zoom, time synchronous measurement
  • Pre-fault symptoms for spectrum analysis
  • Waterfall, phase and real time spectrum
  • Bode and Nyqvist diagrams
  • Peak value tracing, earphones
  • Automatic transducer line test
  • Condition evaluation with green – yellow – red
  • Recording up to 50 hours
  • Voice recording of comments
  • Windows® CE platform
  • 400 MHz processor
  • 256 MB RAM, 512 MB Flash and 1 GB SD memory expandable up to 8 GB
